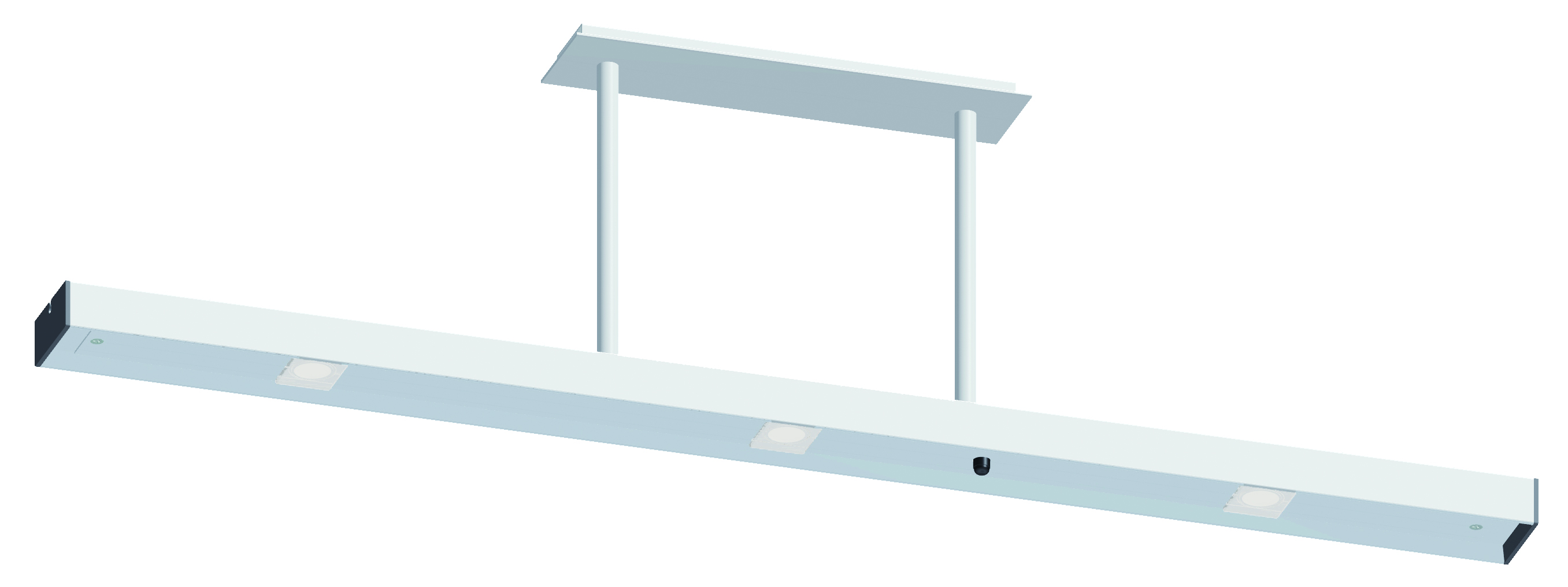

RM20-2711PIR-90
8.5W LED Linear Light, with PIR motion detector (Recessed mount)
- • Power consumption: 9 Vdc 0.7A constant current
• With one PIR motion detector maximum 4 meters detect distance
60 sceonds auto off
• Aluminium housing in matt silver (NA)
• Including LED power supply 100 ~ 240Vac 50 / 60Hz

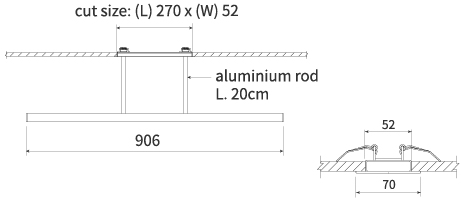

• Recessed mounting, cut size: (L) 270 x (W) 52mm
• With aluminium rod (Ø12.8 x 200mm L.)
WW |
NW |
CW |
Distance (meter) |
1000 lx |
1000 lx |
1000 lx |
0.25 m |
1000 lx |
1000 lx |
1000 lx |
0.5 m |
1000 lx |
1000 lx |
1000 lx |
0.75 m |
1000 lx |
1000 lx |
1000 lx |
1 m |
Light color |
WW |
NW |
CW |
CCT (K) |
3000 |
4200 |
6000 |
CRI |
80 |
75 |
75 |
