PLD2702 series

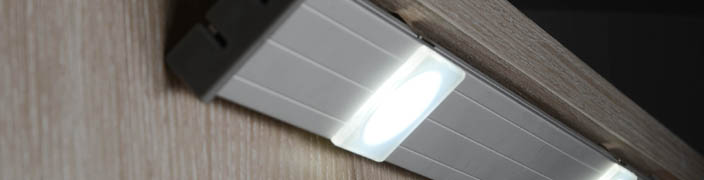

Inside Shelf LED Linear Lights, mounting with spring clips (2.5W module)
- * Application: inside the shelf of kitchen cabinet and furniture

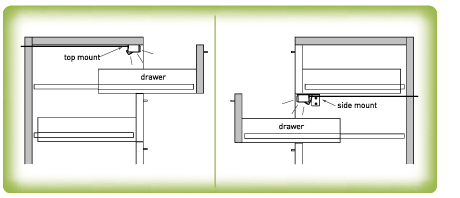

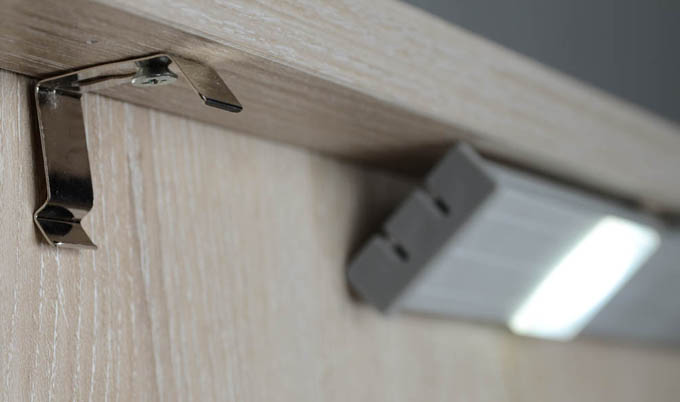

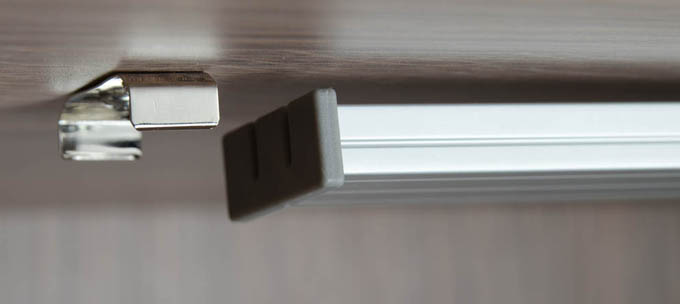

* Extruded aluminium housing, surface mounting, screw fixing, with steel spring mounting brackets - 2 pcs for corner mounting, 2 pcs for flat central mounting
* With MCPET reflector & acrylic diffuser
* Single LED module, CreeR high power XP-E
NW |
CW |
Distance (meter) |
1043 lx |
1043 lx |
0.25 m |
428 lx |
428 lx |
0.5 m |
231 lx |
231 lx |
0.75 m |
141 lx |
141 lx |
1 m |
Light color |
CW |
CCT (K) |
6000 |
Flux (lm) |
528 |
Efficacy (lm/w) |
74 |
CRI |
75 |
